Wholesale Cabinet IML Labels for Premium Branding Solutions

Understanding Cabinet IML Label Technology

In modern cabinet manufacturing, surface decoration must do more than look good. A Cabinet IML Label is a pre-printed polypropylene film that is inserted into an injection mold before molten resin is injected. During molding, the label permanently fuses with the cabinet part surface. The result is a decoration that cannot peel, bubble, or wear away under normal use. Zhongyu has refined this process over two decades, producing Cabinet IML Labels for kitchen cabinet doors, drawer fronts, modular storage systems, bathroom vanities, wardrobe components, and office furniture parts.

Unlike traditional adhesive labels, a Cabinet IML Label becomes part of the plastic substrate itself. The printed film and the molten polymer form a single structure, which means the decoration and the cabinet component share the same durability, chemical resistance, and thermal stability. This process eliminates secondary labeling steps, reduces labor, and delivers a premium, seamless finish that is difficult to achieve with post-molding decoration. Our Cabinet IML Label series includes products such as Injection Molding PP Cabinet with IML Label, etc.

Why Cabinet Manufacturers Choose IML Labels

Cabinet components are exposed to frequent touching, cleaning agents, humidity, and temperature changes. A printed surface that scratches or fades can make an entire cabinet look worn. Zhongyu engineers Cabinet IML Labels to withstand these conditions while maintaining precise color accuracy and texture.

• Permanent fusion: The label is not glued on; it is molded into the part. There is no adhesive layer to fail, no edge lift, and no risk of peeling.
• High scratch resistance: The printed surface is protected by the film layer and can achieve pencil hardness ratings of 2H or higher after molding.
• Chemical and moisture resistance: Cabinet IML Labels resist common household cleaners, alcohol, detergents, and water immersion without ink degradation.
• Design flexibility: Wood grain, solid colors, stone patterns, metallic effects, and custom graphics can be reproduced with sharp detail.
• Streamlined production: The label is placed in the mold automatically or semi-automatically, allowing high-volume output with consistent quality.
• Recyclability potential: Because the label and the cabinet part are both polypropylene-based, the finished component can often be recycled as a monomaterial in closed-loop systems.
• Food contact options: For kitchen storage and cabinet interiors, Zhongyu offers FDA and EU-compliant film and ink systems.

Custom IML Waterproof In Mold Label for Household Product Specifications

IML Label Injection Molding Production Process

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4. Plastic melt injection, film and plastic melt into one piece

5. Demold finished IML plastic products directly

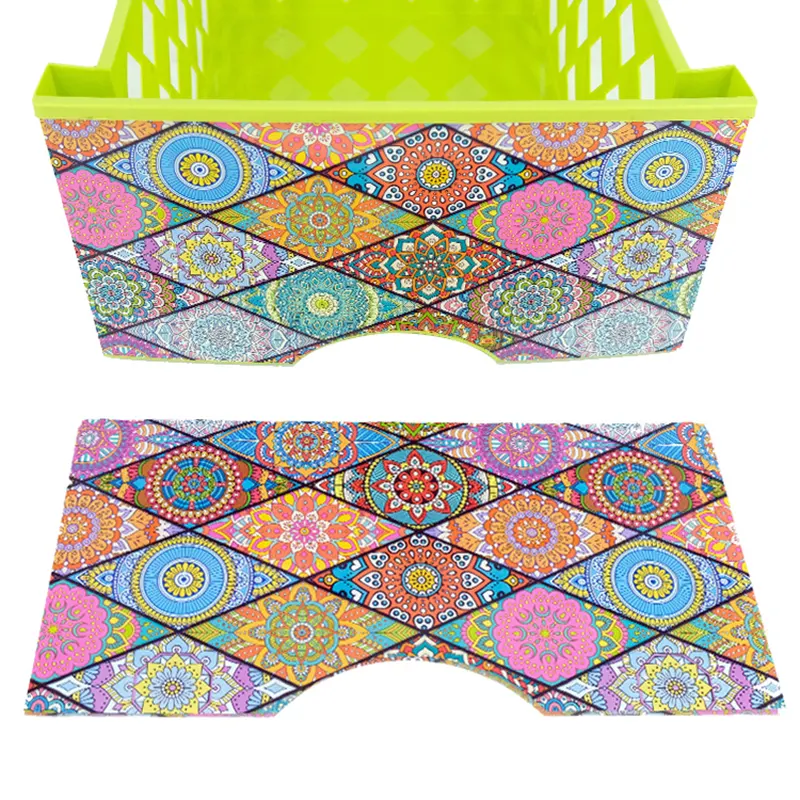

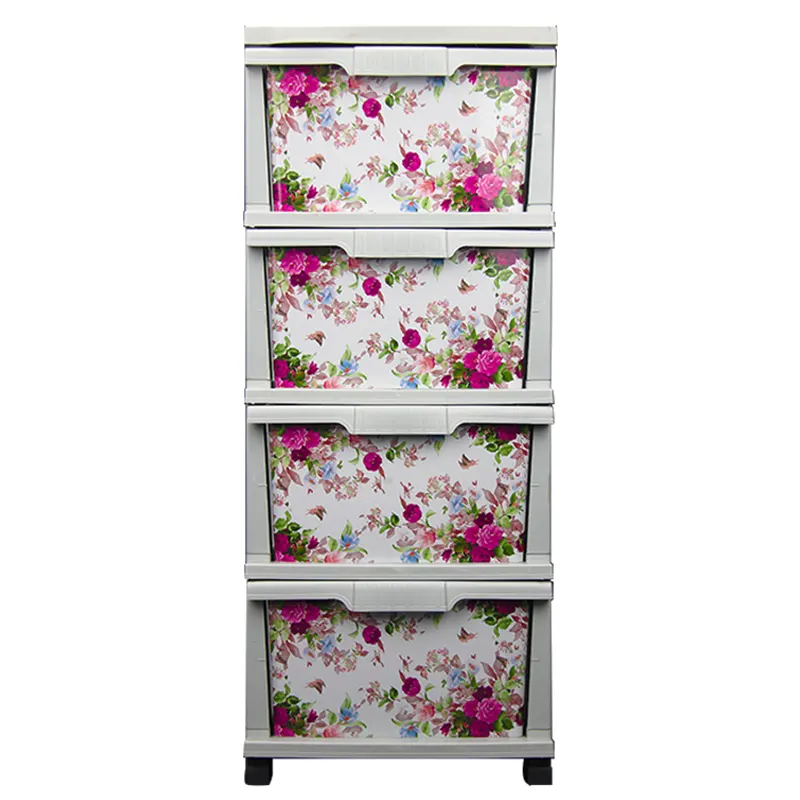

IML Cabinet detailed descriptions

IML can be used for customizing plastic cabinet, supporting diverse visual effects such as wood grain texture, solid color matte, stone-like texture, and metallic finish. It features high gloss, high image clarity, and is non-toxic, the pattern is sealed inside the film layer, resistant to wiping and not easy to fade or peel off, and easy to clean and maintain daily. The label is integrally molded with the board during injection molding, ensuring strong adhesion, scratch and wash resistance, and minimal wear and fading during daily cleaning. It is compatible with various cabinet doors, providing complete and vibrant patterns, and is waterproof and moisture proof, effectively enhancing the overall luxurious feel of the cabinets. It is a practical solution for upgrading the appearance of plastic cabinets in the home.
