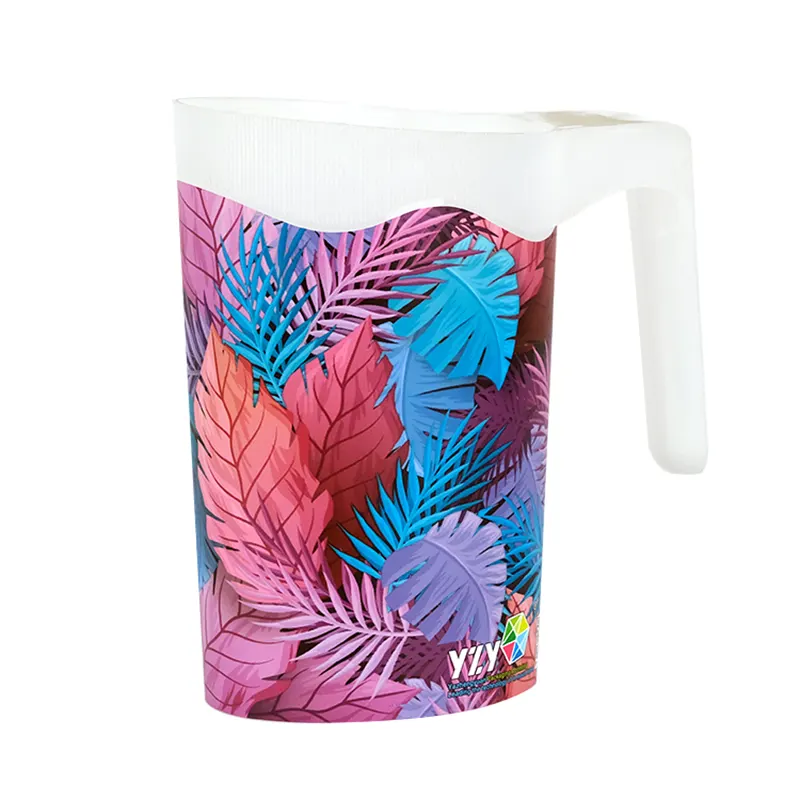

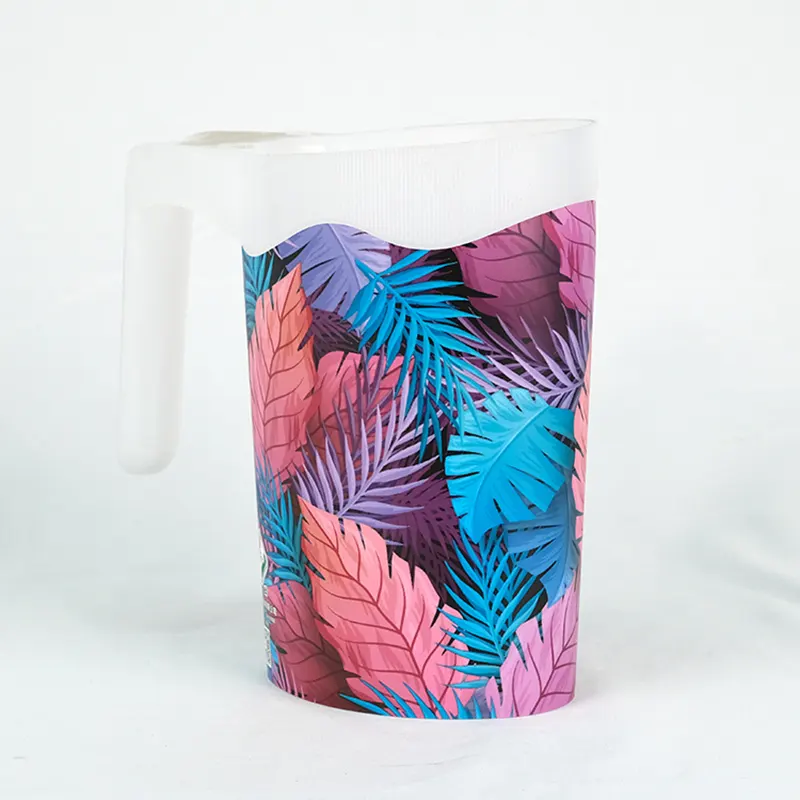

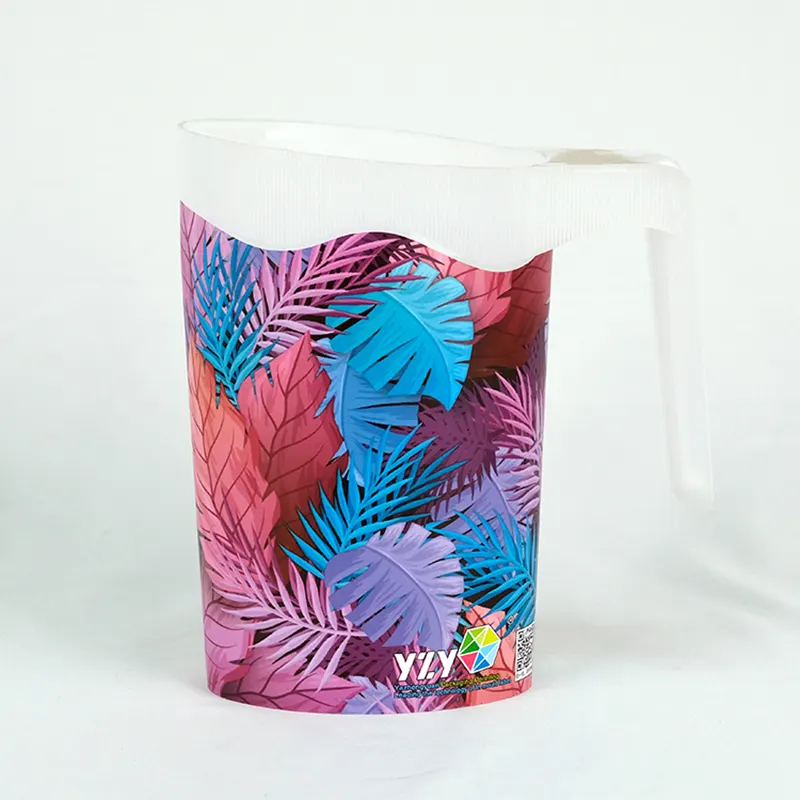

IML Label Injection Molding for PP Tableware

In the injection molding and embedding label process at Zhongyu factory, the root of the handle is a stress concentration area. The IML Label Injection Molding for PP Tableware will cause uneven stretching at this point, which is very likely to cause local distortion and breakage of the full-page surrounding patterns.

This film material has been specially modified for this structural problem. The film material is not directly used as the finished label and is delivered to the injection molding factory in the form of rolls or pre-cut sheet materials.

During the injection molding process, the film material is covered and fused by the molten PP, and the surrounding plant illustrations and large full-page patterns are sealed inside the product. The patterns are completely isolated from water vapor contact.

IML Label Injection Molding Production Process

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4. Plastic melt injection, film and plastic melt into one piece

5. Demold finished IML plastic products directly

Core Strengths

1.To optimize the membrane material's ductility in the stress area of the handle and body, and reduce the stretching misalignment at the connection point.

2.Support full-page large-scale multi-color offset printing, accurately reproduce plant leaves and gradient color contrasts, and ensure the finished product has rich and vibrant colors.

3.Outstanding anti-hydrolysis performance. Even when the printed layer is soaked in cold water for a long time or repeatedly rinsed, it is unlikely to become white or delaminate.

4.Originating from the same material as the PP base material, no need to peel off the decorative layer, meeting the requirements of overseas recycling regulations.

5.Suitable for various wall thicknesses of the pot body, regulating the thermal shrinkage to improve poor injection appearance such as creases and waves.

6.Available in roll stock or pre-cut sheet materials, adaptable to different factory labeling operation methods.

Differential advantage

Compliance Certifications

This IML Label Injection Molding for PP Tableware is selected materials in accordance with the contact standards for household daily products, and can provide material-specific material reports.

The factory has established a complete incoming material, process, and finished product inspection process. Each batch of IML membrane materials retains production samples and inspection records to achieve full batch traceability.

The enterprise has passed the standardized quality management system certification. The dust-free production workshop controls the printing production environment, reducing dust and particles on the membrane surface that cause injection defects.

For export and foreign trade orders, it can cooperate with customers to complete material information verification and assist customers in connecting with overseas compliance review work.

Custom IML Waterproof In Mold Label for Household Product Specifications

Production Process

Base material pre-treatment:

Perform surface activation treatment on the PP base film to enhance the bonding strength between the ink and the base film, preventing the ink layer from peeling off during injection at high temperatures.

Multi-color intaglio offset printing:

Print multiple layers of ink sequentially, make color pre-compensation for large-area high-saturation patterns to offset the color deviation caused by injection at high temperatures.

Curing and solidification treatment:

Enter the curing process after printing to allow the ink to fully solidify, avoiding potential ink migration issues in the later use.

Quality inspection:

Visual inspection of the roll material throughout the process, screening out defects such as pinholes, dirt spots, and printing deviations.

Rolling / Cutting processing:

Cut into specified width rolls according to customer requirements; or complete irregular-shaped cutting according to the water kettle label contour to output single-piece finished products.
