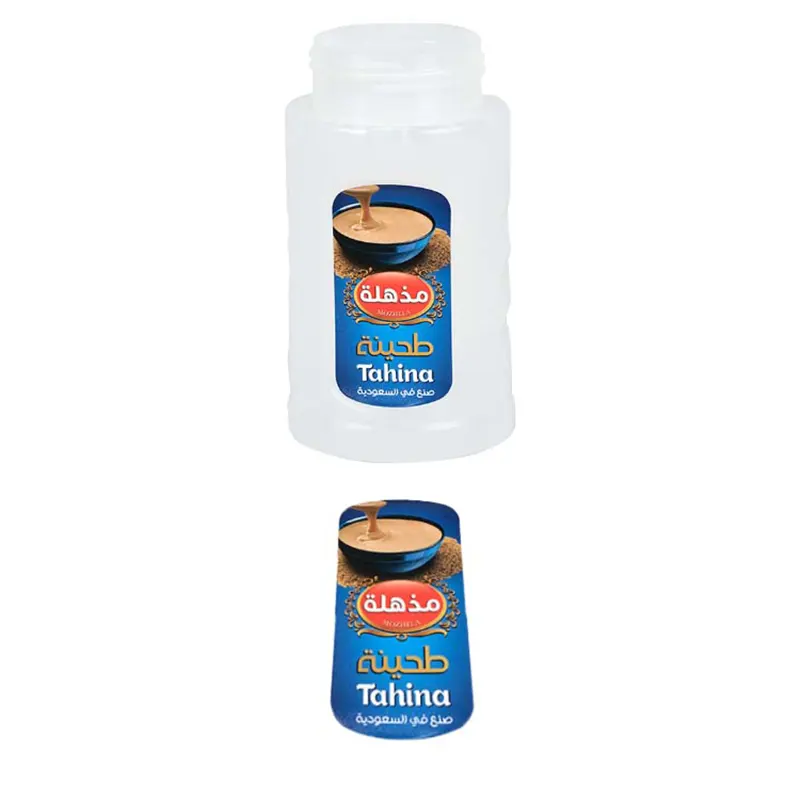

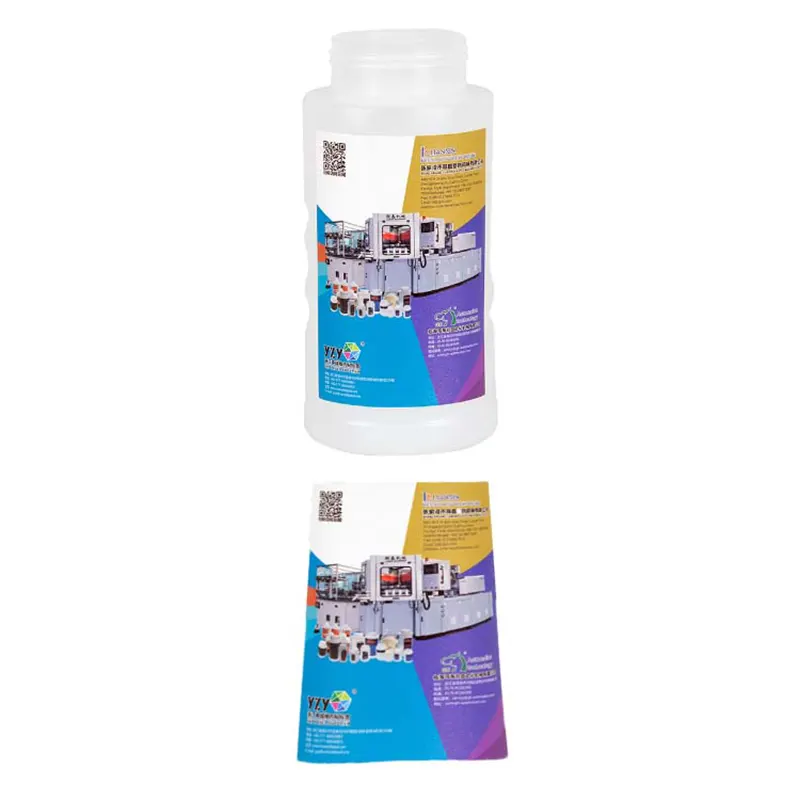

IML Label PP Toiletry Bottles by Blow Molding

This layer of IML Label PP Toiletry Bottles by Blow Molding produced by YZY factory not only gives the bottle body a high-grade touch and visual appeal, but also acts like a tough physical armor, effectively enhancing the pressure resistance and drop resistance strength of the thin-walled parts.

Design

1. Breaking the limitations of traditional flat surfaces: Specifically designed for complex curved surface structures such as wave patterns, double-handle design, and curved bottle bodies, it perfectly meets the creative demands of high-end hair care products for the streamlined appearance of the bottle.

2. Seamless three-dimensional visual presentation: Through precise tension control during injection molding, the label naturally stretches at high temperatures, completely eliminating the boundary feeling of traditional labels and presenting a sophisticated appearance with a sense of three-dimensional relief.

Adhesion Technology

Equipped with patented fully automatic die-cutting equipment, the tolerance is strictly controlled within ±0.1mm, capable of precisely cutting extremely complex wave edges and irregular arcs.

In addition to relying on electrostatic adsorption, the label edge is specially designed with a physical positioning structure, precisely fitting into the mold groove during high-speed injection molding, eliminating deviation and wrinkling.

IML Label Blow Molding Production Process:

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4.molten plastic is blown into the mold, taking shap, the plastic wraps around the label along with the surface of the mold

5. As the plastic cools, the label integrates with the product, allowing the label to be directly embedded into the product

Physical properties

1. Highly resistant to chemical media

2. Strengthening weak points to withstand pressure

3. Protecting the inner layer ink

Precision quality control and service guarantee

1. Closed-loop temperature and humidity control

Due to the fact that IML Label PP Toiletry Bottles by Blow Molding are highly susceptible to temperature and humidity, the workshop implements high-precision environmental control to ensure that the color of each batch of labels is stable and unaffected by expansion and contraction.

2. Ten-thousand-level cleanroom

Self-built ten-thousand-level die-cutting and ten-thousand-level dust-free printing areas, completely eliminating particle pollution-induced white spots and dust spots, ensuring clean and neat die-cut lines.

3. Complete "machine-on simulation" testing

Before each batch leaves the factory, the technical team conducts high-temperature stretching simulation tests to ensure that the film material perfectly matches your customized injection molding molds.

4. Authoritative certifications and global supply

Obtained multiple international quality system certifications such as ISO9001, and have been providing special supply solutions for global leading personal care brands for many years, possessing profound practical experience.

Custom IML Waterproof In Mold Label for Daily Chemical Packaging Product Specifications

FAQ

Q: Can irregular wave-shaped die-cutting be done?

A: Yes, our die-cutting accuracy can reach ±0.1mm. We customize for complex shapes.

Q: How can the labels adhere to the concave-convex curved surfaces?

A: We use a high stretch rate special substrate, combined with physical stops and high-pressure injection filling.

Q: Are the irregular-shaped labels prone to deviation during injection molding?

A: No, it has a dual anti-deviation design of electrostatic adsorption and additional physical stops.

Q: Will the patterns come off when the shower bottle is frequently wet?

A: Absolutely not. The film layer has excellent water repellency, and the patterns are sealed inside.

Q: Does the custom production cycle of irregular parts take a long time?

A: The regular custom production of irregular parts takes approximately 7-10 days. We can provide full process guidance.

Q: Are there high environmental requirements?

A: Yes, we produce in a temperature-controlled and humidity-controlled, and 100,000-grade dust-free workshop.
