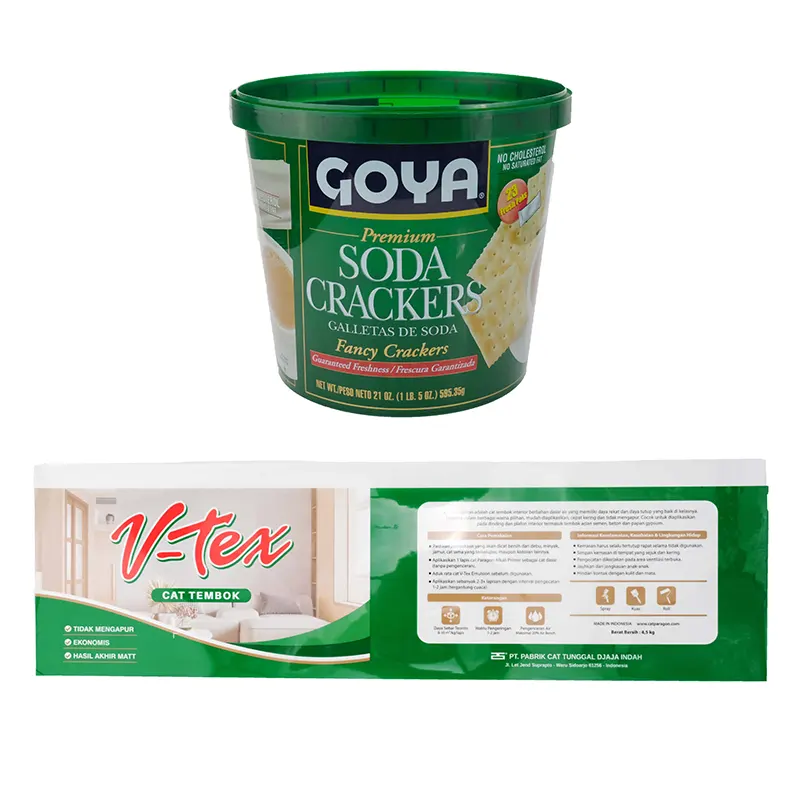

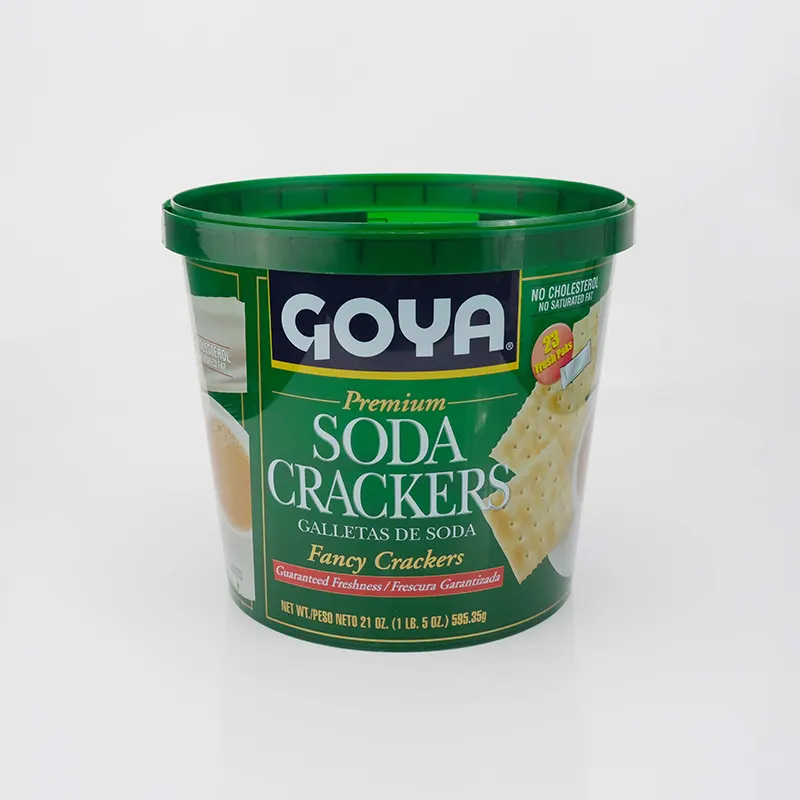

Injection Molding PP Paint Bucket with IML Label

This China Injection Molding PP Paint Bucket with IML Label, produced by Zhongyu supplier during the injection molding process, completes product decoration and eliminates the traditional labeling process, achieving the ultimate efficiency of "one injection molding".

The film material is fully integrated with the bucket body, forming a seamless protective layer. It has characteristics such as scratch resistance, UV resistance, and chemical corrosion resistance, ensuring that the brand pattern remains clear and durable in complex environments and supply chains.

Application scenario

Our Injection Molding PP Paint Bucket with IML Label is suitable for packaging various paints, lacquers, and other coatings, as well as outdoor products and chemical raw materials where high packaging durability is required.

Material Advantage

This film material is made from biaxially oriented polypropylene base material. With the professional technology of our own factory and a 6,000-square-meter standardized workshop, the entire process from printing to die-cutting is precisely controlled.

1.Temperature Resistance: The film material can maintain integrity at temperatures ranging from 200°C to 240°C, suitable for various PP injection molding temperature environments, without softening or warping.

2.Chemical and Physical Resistance: It has excellent resistance to oil stains, acid and alkali, and mold prevention. It is resistant to friction and allows for soaking and cleaning, making it durable.

3.Printing Accuracy: It uses intaglio printing technology, supporting high-precision multi-color printing of up to 10 colors. The clarity of the pattern exceeds traditional processes and can present various visual textures such as matte, glossy, metallic, and rainbow.

4.Environmental Friendliness and Anti-counterfeiting: The label and bucket body materials are the same, allowing for simultaneous melting and recycling to reduce environmental pollution. The pattern is directly embedded in the product and cannot be peeled off, possessing natural anti-counterfeiting properties.

Custom IML Waterproof In Mold Label for Daily Chemical Packaging Product Specifications

IML Label Injection Molding Production Process:

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4. Plastic melt injection, film and plastic melt into one piece

5. Demold finished IML plastic products directly

Notes for Attention

Pre-pressing and Proofing

It is recommended to provide the physical product or precise size data before the batch injection molding, so that we can customize the die-cutting size of the film material according to the injection molding shrinkage rate, ensuring a seamless fit.

Environment and Static Control

The film material comes with built-in anti-static treatment, but if the humidity in the injection molding workshop is too high or the static electricity is insufficient, it is recommended to use auxiliary suction cups or install an electrostatic generator to ensure stable material extraction.

Color Adjustment for Dark Base Materials

If the base color of the barrel is too dark, it may cause the color of the pattern to darken. By increasing the thickness of the white ink layer or using a high-concentration white ink, the color presentation can be optimized.

Production Parameter Adaptation

According to the tonnage of the injection molding machine and process differences, it is recommended to conduct small-batch trial molding in advance to test the positioning accuracy and integration effect of the film material during the injection molding process.

FAQ

1. Does your film material support a transparent effect?

Yes. We offer transparent BOPP film material. If you want to expose the inside of the container, you can directly use the transparent label solution.

2. How can we ensure that the film material perfectly matches the mold size?

It is recommended to provide product samples. We can precisely customize the die-cutting size based on the injection molding shrinkage rate to achieve seamless integration.

3. How many colors does your printing support?

We use an intaglio printing machine, and the highest precision multi-color printing can support up to 10 colors.

4. What is the minimum order quantity for the product?

The minimum order quantity for the regular design is 3,000 square meters. The regular production cycle is approximately 10-15 days.

5. Is your Injection Molding PP Paint Bucket with IML Label heat-resistant?

Yes. The film material can remain stable in an injection molding environment above 200°C, ensuring that the pattern does not fall off or fade.

6. Does your factory have relevant environmental certification?

Yes. The company adheres to standards such as ISO9001 and ROHS, and the products comply with international environmental, safety, and durability testing requirements.

7. Can samples be provided for free testing?

OK. We offer free samples of the existing labels for customers to test the size. The shipping cost will be borne by the customers themselves.
