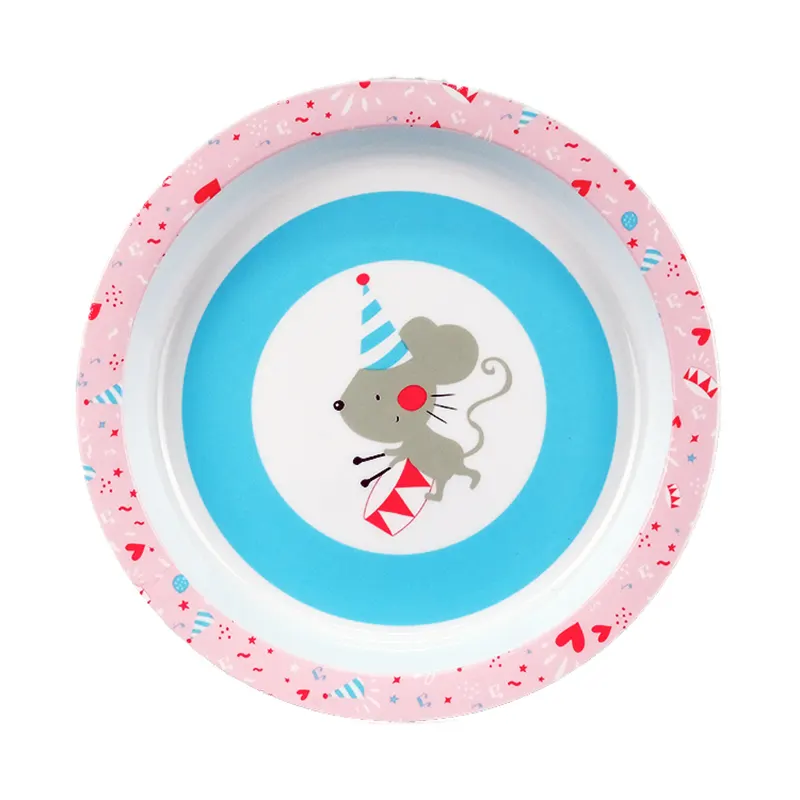

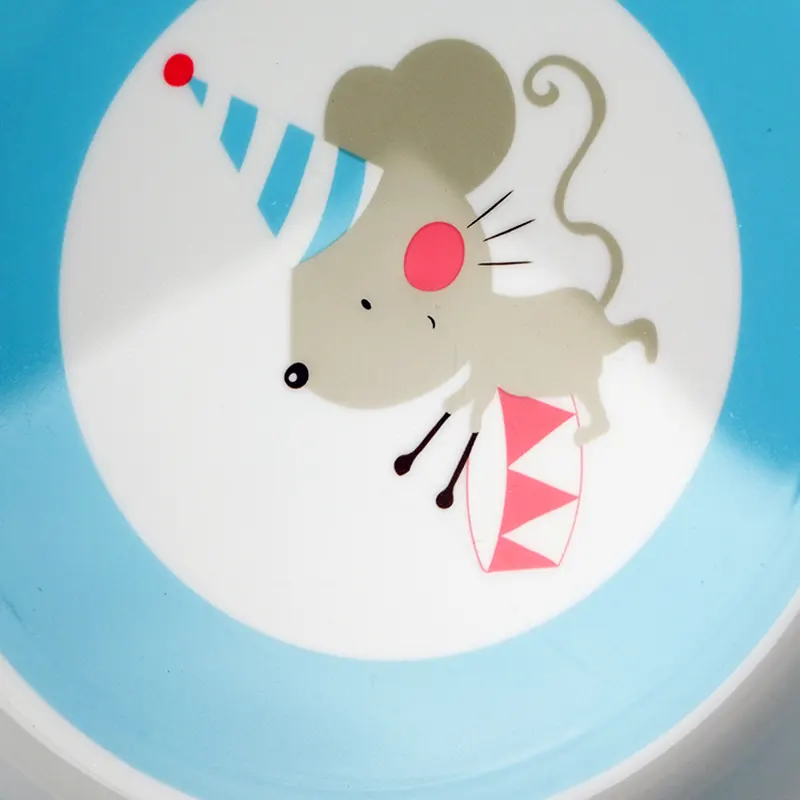

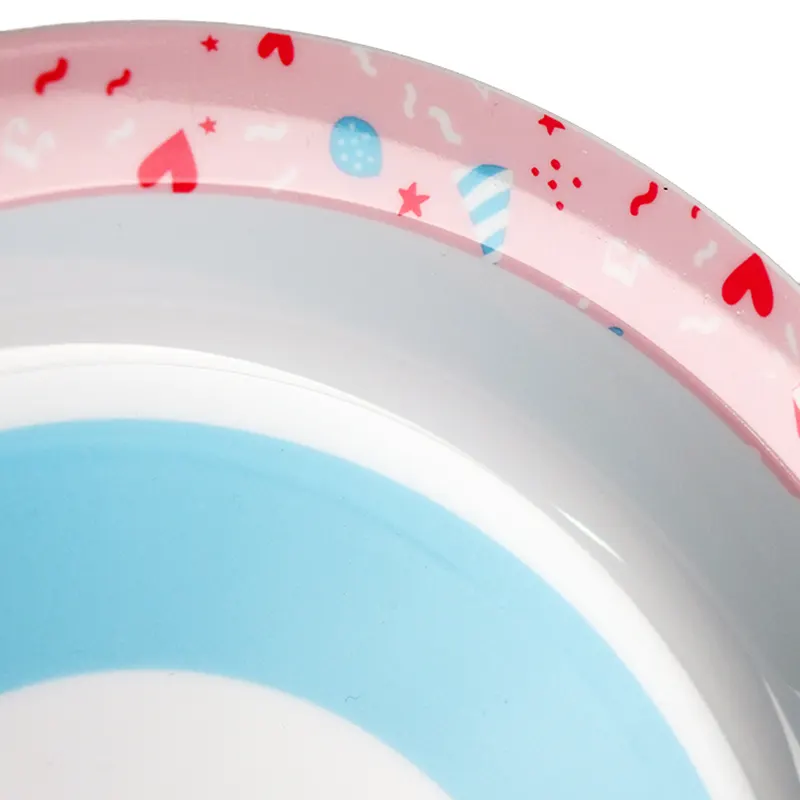

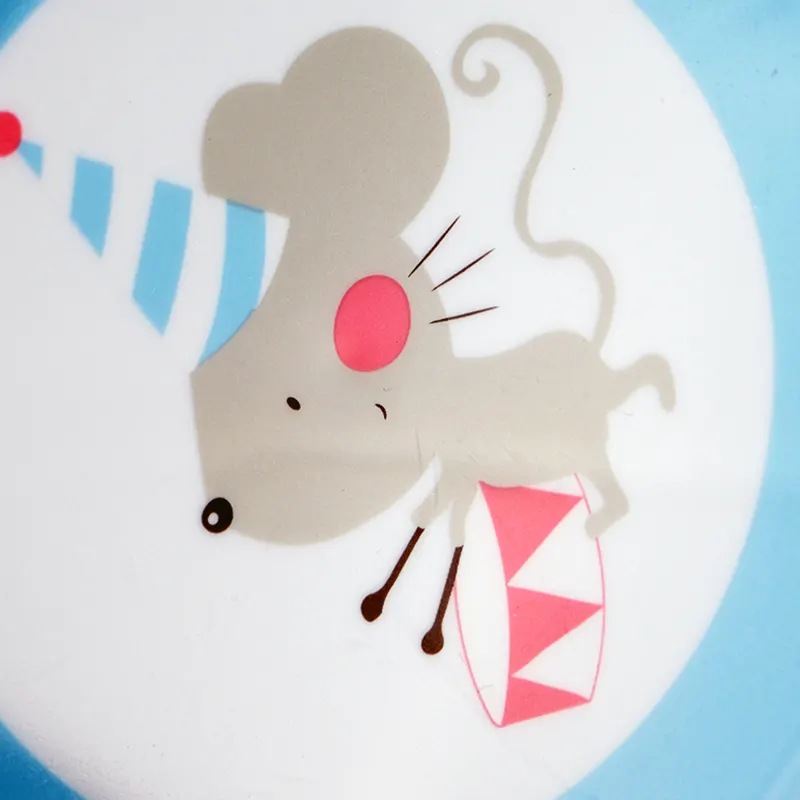

Injection Molding PP Tableware with IML Label

During the injection molding process, the film materials are pre-positioned in the mold and fused with the molten resin under high temperature and pressure in one step, becoming the permanent surface layer of the product. The Injection Molding PP Tableware with IML Label solution provided by Zhongyu can help downstream customers effectively simplify production processes, replace traditional painting and heat transfer printing secondary decoration processes, and achieve more efficient and environmentally friendly green manufacturing.

Custom IML Waterproof In Mold Label for Household Product Specifications:

Film material characteristics

As a professional IML film material supplier, Zhongyu's Injection Molding PP Tableware with IML Label has the following core advantages in the process:

1. Excellent dimensional stability

2. Excellent ductility and molding performance

3. High precision and high clarity

4. Perfect surface sealing effect

Material advantages

For different application scenarios, Zhongyu provides various high-performance base materials for IML film materials:

Magnetic and weather-resistant protection: The surface hardening coating gives the film material extremely high scratch resistance, combined with chemical reagent resistance, oil stain resistance, and weather resistance, ensuring that the pattern remains bright and unchanged for years without fading or peeling.

Safe, environmentally friendly, and recyclable: The film material and base resin are usually of the same material, and the finished product can be crushed and recycled as a whole. The production process has no glue, no solvent volatilization, and strictly complies with international environmental protection regulations such as ROHS.

Physical toughness and anti-counterfeiting: The film material maintains toughness at low temperatures and is not prone to cracking. At the same time, since the pattern is embedded and sealed, it is difficult to peel off, providing a natural anti-counterfeiting effect.

IML Label Injection Molding Production Process:

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4. Plastic melt injection, film and plastic melt into one piece

5. Demold finished IML plastic products directly

FAQ

1. Is Zhongyu manufacturing plastic products or film?

We are a professional manufacturer of IML in-mold label film, specializing in research and production of decorative film materials for the injection molding industry, and not an enterprise that produces final plastic products.

2. Which substrates do your IML film support?

We mainly provide IML film materials for high-performance substrates such as PC and PET. We can also recommend the most suitable material combinations based on customers' requirements for deep stretching and chemical resistance.

3. How hard is the Injection Molding PP Tableware with IML Label? Will it be easily scratched?

Our film surface has a hardened coating. The hardness of the regular products can reach 2H, which has excellent scratch resistance and wear resistance, effectively protecting the internal patterns.

4. Are your films suitable for injection molding products with deep cavities or complex curved surfaces?

Yes. The film material has excellent forming extensibility and can meet the requirements of deep stretching molding with different substrates (such as PC).

5. Where is the pattern printed on the film? Will it come off?

The pattern is printed on the inner second surface of the film by precise printing. During injection molding, it is permanently fused and sealed with the resin. This "sandwich" structure ensures that the pattern will never come off, peel, or fade.

6. How to obtain samples or conduct technical proofing?

We provide samples and customized proofing services. Customers provide design drafts or physical requirements, and our R&D team will assist in evaluating material selection and making test film sheets. Welcome to negotiate cooperation.

7. Are your film materials environmentally friendly?

Extremely environmentally friendly. The film material and resin achieve integrated recycling, and the entire production and usage process has no glue or painting, fully complying with international environmental protection and safety standards.
