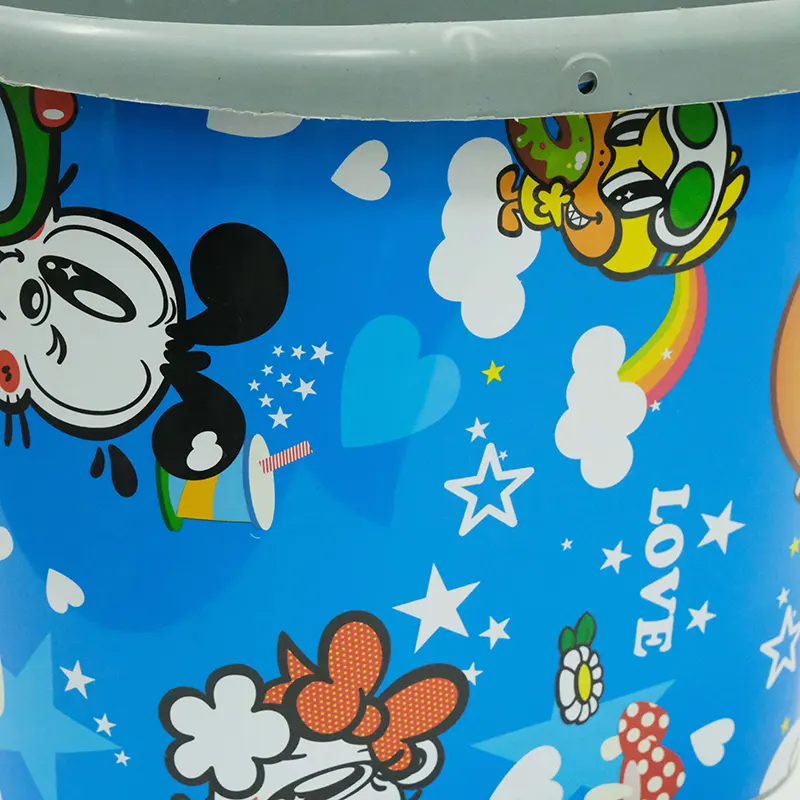

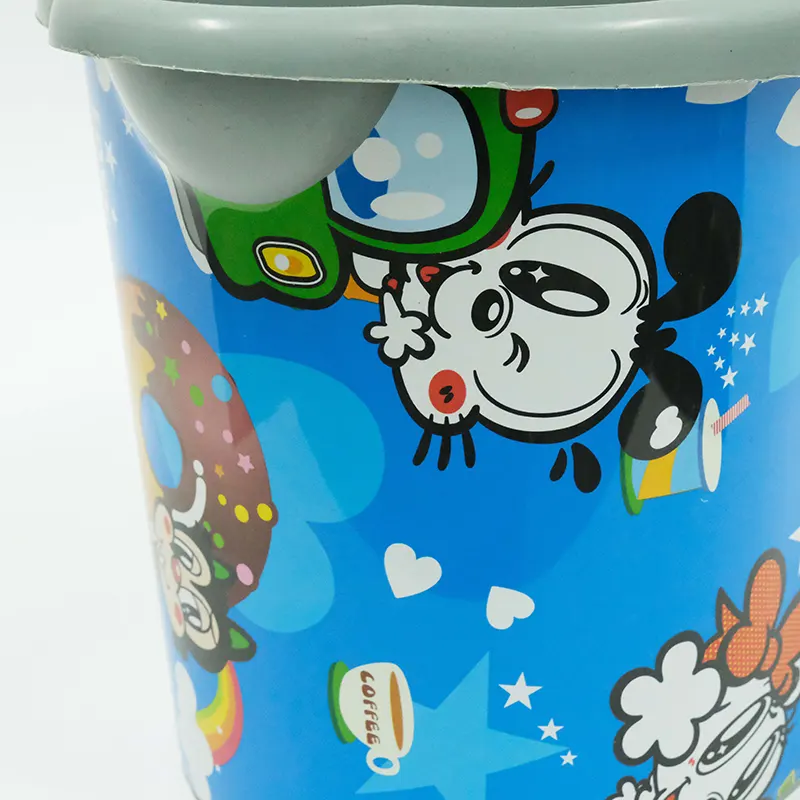

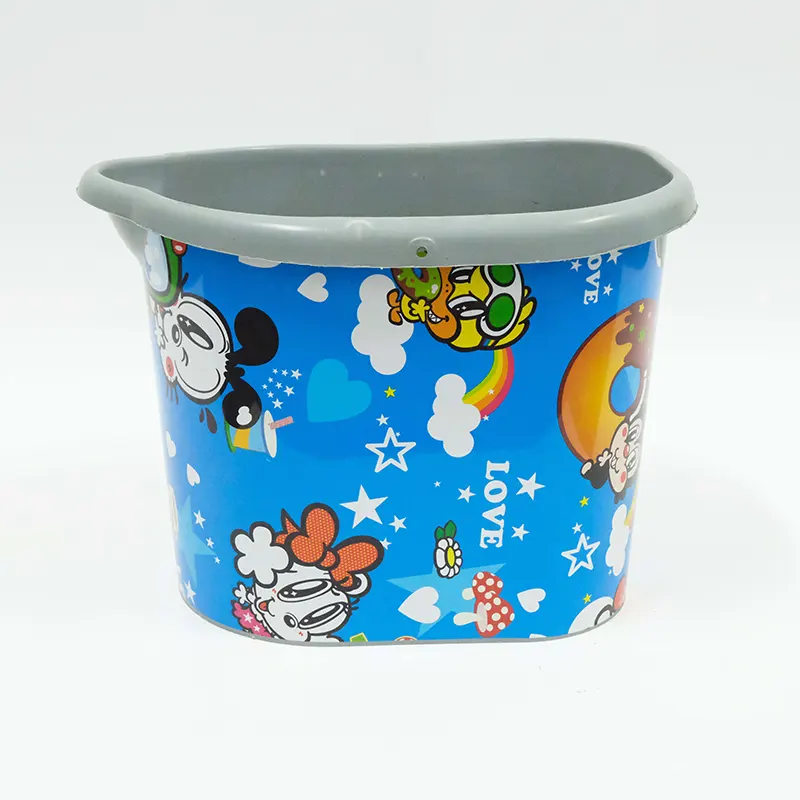

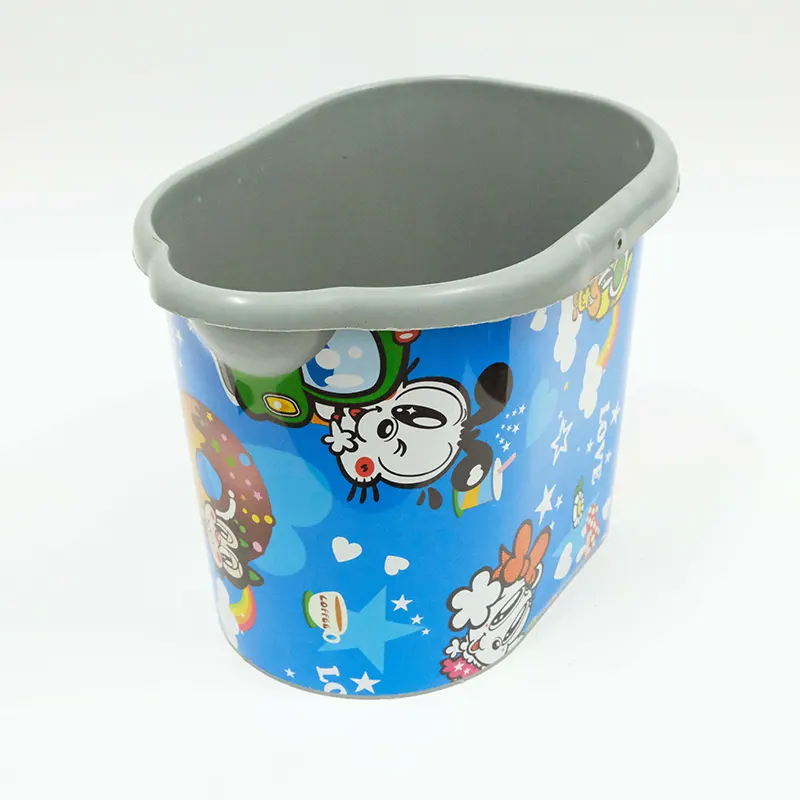

Injection Molding PP Water Basin with IML Label

This high-quality China Injection Molding PP Water Basin with IML Label, manufactured by Zhongyu's suppliers, seamlessly integrates with the water basin wall, forming a permanent decorative layer without the need for adhesives, and combines high durability and excellent visual appeal.

Cleanliness Control

To ensure the printing quality of the film before injection molding, Zhongyu implements strict cleanliness control in the production environment, aiming to eliminate dust blemishes:

1. Class 10,000 clean workshop

2. Constant temperature and humidity environment

3. Inspection by light-blocking tester

4. Protective equipment and process regulations

5. Green sustainability

Packaging

Zhongyu continuously practices the concept of circular economy to promote the implementation of green packaging:

1. Single material easy recycling

2. Odorless solvents and high safety

3. Leading new membrane material technology

4. Production logic for emission reduction and efficiency improvement

Product Core Selling Points

Seamless Integration and Anti-counterfeiting Protection: The label and the basin body are fused at the molecular level, making it impossible to peel off and possessing natural anti-tampering and anti-counterfeiting properties; the surface has no gaps for dirt to hide, and cleaning is extremely simple.

Superior Weather Resistance and Durability: The Injection Molding PP Water Basin with IML Label has excellent anti-scratch, chemical corrosion resistance, and UV resistance. Even under frequent water washing, low-temperature freezing, or harsh high-temperature conditions, the pattern remains bright without warping, fading, or falling off.

Rich and Diverse Visual Presentation: Supports high-precision intaglio printing, enabling high-saturation colors; offers various surface effects such as glossy, matte, metallic, and transparent, meeting brand customization needs.

Automation Cost Reduction and Efficiency Enhancement: The IML process can complete the decoration during the water basin injection molding step. The fully automated production significantly shortens the cycle, reduces labor and post-processing losses, and significantly improves overall production efficiency.

IML Label Injection Molding Production Process

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4. Plastic melt injection, film and plastic melt into one piece

5. Demold finished IML plastic products directly

Custom IML Waterproof In Mold Label for Household Product Specifications

FAQ

Q: What types of injection molding materials are mainly suitable for Zhongyu's IML film material?

A: It is mainly applicable to PP products, including water basins, buckets, cups, plates, etc.; it can also be matched with other materials such as PS, AS, PC, ABS according to project requirements.

Q: What is the grade of the dust-free workshop? How to ensure the dust-free points in printing?

A: We have equipped a ten-thousandth grade dust-free workshop and GMP production areas. Combined with a constant temperature and humidity system and regular dust/microorganism tests, we eliminate dust defects comprehensively.

Q: How is the printing precision and color reproduction of the film material?

A: It adopts intaglio printing technology, with high resolution, supports up to 10-color overprinting, high color saturation, and is calibrated strictly according to the PANTONE color card, with batch color difference controlled within industry standards.

Q: What if the pattern color of the film material becomes darker during use due to static electricity not being able to adhere to the mold?

A: The factory's film material comes with built-in static electricity and a static electricity generator; if the static electricity is lost due to a humid environment, it can be solved by installing an electrostatic device or considering using auxiliary suction cups during operation.

Q: Why does the pattern color seem darker after injection molding?

A: This is usually caused by the deep color of the water basin base. It can be effectively solved by increasing the thickness of the white ink layer or using a high-concentration white ink during design.

Q: How to ensure the perfect matching of the film material size with the mold?

A: The cutting size of the film material needs to be tested comprehensively based on the product shrinkage rate and injection molding machine parameters. It is recommended that the customer provide product samples, and we will precisely customize the cutting size based on this to achieve seamless adhesion.

Q: What are the special advantages of the film material in terms of environmental recycling?

A: We adopt a single material solution and keep up with the latest technologies, providing separable film materials. During mechanical recycling, the labels can automatically detach and separate, making the purity of the recycled PP material higher.
