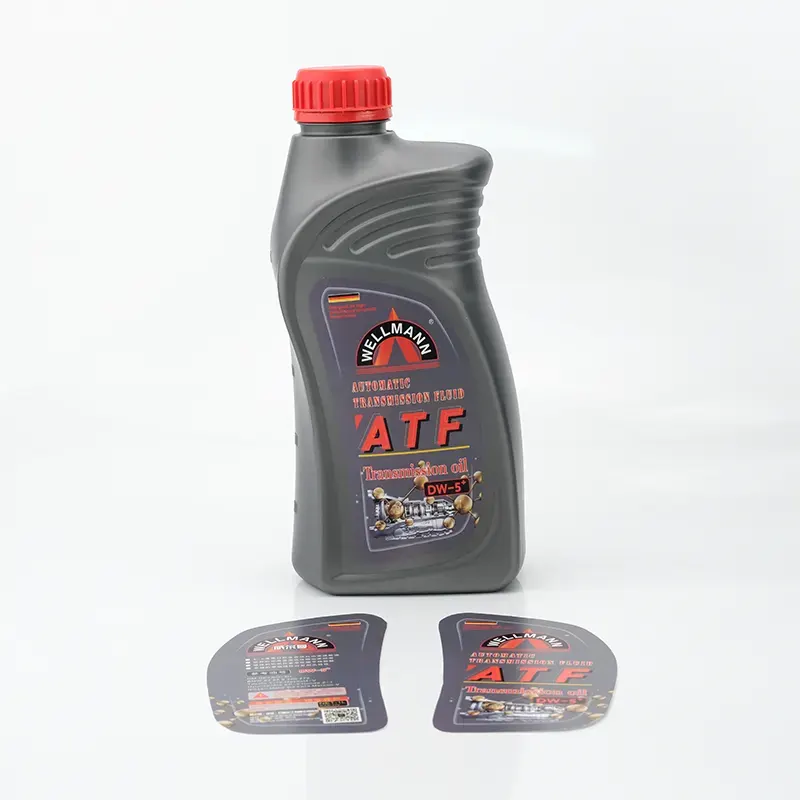

PP Oil Bottles IML Label Blow Molding

Choosing the China PP Oil Bottles IML Label Blow Molding supplied by Zhongyu's factory, this process makes the label disappear within the bottle, not only enhancing the overall sophistication of industrial products, but also reshaping the anti-counterfeiting and anti-opening logic of oil packaging, giving the product a purer industrial aesthetics and all-weather anti-decomposition ability.

Custom IML Waterproof In Mold Label for Daily Chemical Packaging Product Specifications:

IML Label Blow Molding Production Process:

1. Gravure printing on PET/PP film and Lamination

2. Cutting into standard label sheets

3. Automatic robot places labels into injection mold cavity

4.molten plastic is blown into the mold, taking shap, the plastic wraps around the label along with the surface of the mold

5. As the plastic cools, the label integrates with the product, allowing the label to be directly embedded into the product

Notes for Attention

Control of overprint on dark backgrounds and complex patterns: For dark substrates such as oil bottles and complex textures like camouflage, the thickness of the underlying white ink must be strictly controlled to ensure high color saturation and prevent base color showing through.

1.Matching of abnormal curved surface shrinkage rates

For complex streamlined bottle bodies, uneven shrinkage occurs during injection molding. It is necessary to calculate the mold shrinkage rate in advance and precisely adjust the die-cut deformation of the film to prevent the patterns from stretching and deforming or developing stress whitening on the curved surfaces.

2.Handling of high-temperature injection molding exhaust

Complex bottle bodies are prone to trapped air, so exhaust grooves need to be designed at the corresponding positions of the mold to prevent bubble accumulation during high-pressure injection molding, which could cause film wrinkling or adhesion loss.

3.Isolation of strong solvent media

For media containing strong solvent components such as fully synthetic oils, the chemical resistance of the film material coating needs to be evaluated before filling to prevent long-term solvent penetration, which could lead to a decrease in surface glossiness.

Product testing

Extreme temperature range alternating test: Perform 500 cycles of alternating cold and hot temperatures ranging from -40℃ to 80℃ to verify the anti-peeling and anti-deformation capabilities of the diaphragm and the bottle body in extremely cold and hot oil environments.

High concentration oil resistance corrosion test: Immersing the finished product in various oils and lubricants for long-term monitoring of the oil resistance, anti-permeation property, and color integrity of the membrane material surface.

High drop and destructive physical test: Simulate multiple free falls from high altitudes under full load conditions to verify the impact resistance of the diaphragm in deep bends and protrusions (such as handles), ensuring no cracking or peeling.

High precision surface hardness test: Using a high-hardness pencil rubbing instrument to verify the abrasion resistance of complex textured surfaces, to cope with the severe challenges of storage and turnover environments.

FAQ

Q: What is the minimum order quantity?

A: The standard customization starts from 3,000 square meters. The exact quantity depends on the complexity of the process.

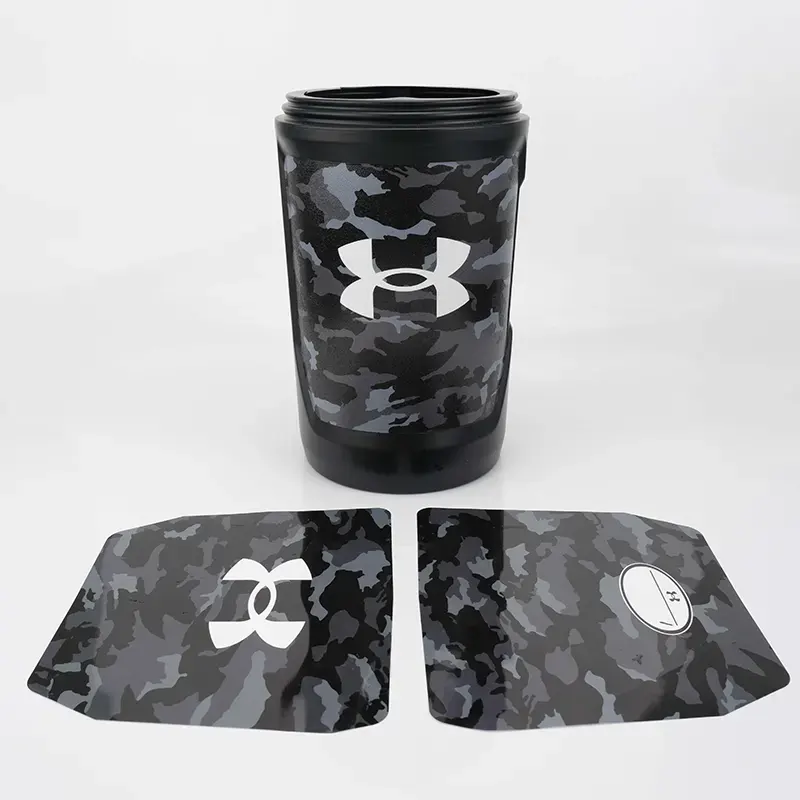

Q: Can you make the complex camouflage texture like the one shown in the picture?

A: Yes. We support multi-color high-definition overprinting. Complex and fine textures such as camouflage can be accurately reproduced.

Q: The curved bottle body is most afraid of pattern deformation. How do you solve this?

A: Through 3D modeling to simulate the shrinkage rate, precisely design the die-cut shape to ensure a perfect fit of the curved surface.

Q: How long does the delivery time usually take?

A: The normal production cycle is 10-15 days. Special urgent orders can be evaluated for expedited processing.

Q: Does this PP Oil Bottles IML Label Blow Molding offer free sample testing?

A: We provide regular sample testing. The specific cost is evaluated based on the complexity of the customization, and the shipping cost is the customer's responsibility.

Q: Are there any relevant quality certifications?

A: We have multiple international quality and environmental protection system certifications, and support customer factory audits.

Q: Can it be directly injection-molded?

A: We can provide a complete set of injection-molding parameter guidance and adaptation solutions to ensure a perfect connection with the production line.
